ELECTRIC MOTORIZED WASTE VALVE SYSTEM FOR RECREATIONAL VEHICLES
ELECTRIC MOTORIZED WASTE VALVE SYSTEM FOR RECREATIONAL VEHICLES

Automatically, easily and quickly drains your RV’s Black and Gray Water Tanks with the Flip of a Switch

  • Complete 1½” or 3” Bristol termination valve assembled to actuator motor and plug set with 6 pin Molex connector

  • Motorized valve rocker switch and wireharness with 6 pin Molex connector

  • Black or Gray switch platewith fuse assembly

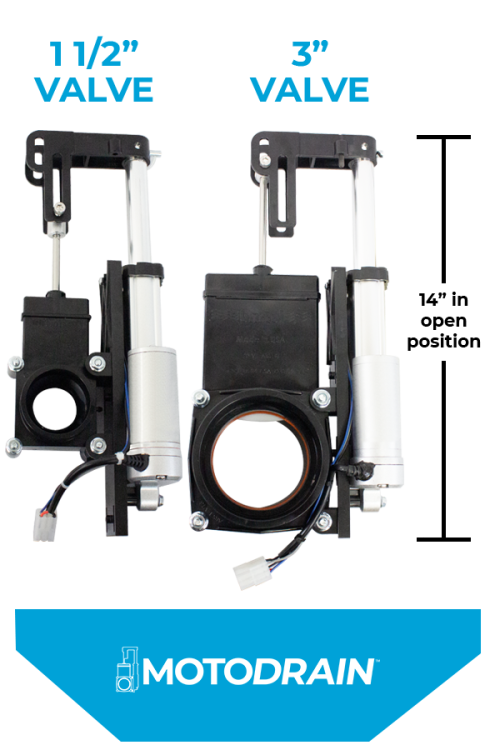

1 1/2" Valve

3" Valve

Specifications

  • Voltage – 12 Volts DC
  • Amperage – .5 AMPS
  • Open/Close Cycle Time – 2.0 seconds
  • Open/Close Cycle Tested – 6,000 cycles
  • Operating Temp: -30F to 120F
  • Flow Direction – Either direction

Key Features

Modular, Patent pending design accepts either 1-1/2” or 3” Valves to accommodate both Gray and Black RV Water tanks.
MOTODRAIN features Bristol termination valves, the market leader and the only RV termination valves Made in the USA.
MOTODRAIN’s compact design supports installations in limited space environments.

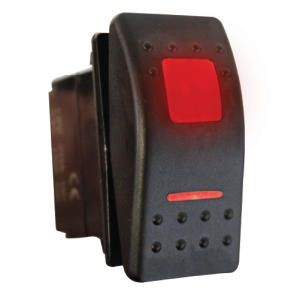

3 Position switch fully opens or closes the valve and also allows toggling when a gradual release of the tanks is preferred.
Single indicator switch features RED light when valve is open to alert RV end user and prevent messy accidents.
1/2 AMP fuse protects system and valve wiring in case of RV electrical system malfunction. Common fuse is easily replaceable if necessary.
Easy to engage, single pin bypass feature provides for manual operation of valve in case of RV battery or electrical system failure.
Vertical and horizontal Actuator Support Arms made of rugged, impact resistant ABS plastic for strength and dependability.
Sealed Linear Actuator with enclosed screw drive mechanism is superior to the open rack & pinion systems currently found in RV applications.
MOTODRAIN’s weather resistant Sealed Linear Actuator resists water, dirt, dust and grime to provide years of reliability and dependable service.
Each MOTODRAIN valve is factory tested to ensure quality assurance.
Model Numbers Description
66N11ABMDV
1½” HUB X SPIGOT MOTORIZED TERMINATION VALVE
66N4AAMDV
3” HUB X HUB MOTORIZED TERMINATION VALVE
66N4ABMDV
3” HUB X SPIGOT MOTORIZED TERMINATION VALVE
66N4BBMDV
3” SPIGOT X SPIGOT MOTORIZED TERMINATION VALVE

Certified to the following standards:

  • IAPMO TS 30 – Termination Valves for Use in Recreational Vehicles
  • UL 429 – Electrically Operated Valves
  • CSA C22.2 No. 139 – Electrically Operated Valves
